Parker mPR Direct-Drive Stages

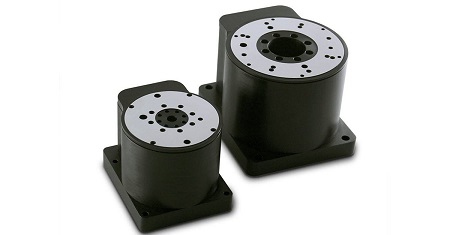

    The mPR series is a miniature precision direct drive rotary stage with integrated high precision rotary bearing, high resolution rotary encoder, and 3 phase AC servo motor. It has been engineered to deliver a combination of modularity, flexibility, and performance in an extremely compact package. The mPR is available in two form factors – 80mm and 104mm diameters. The combination of size, high precision, and all the features mentioned above make the mPR the ideal positioner for a number of high tech industries. The mPR's low profile and high precision make it ideal for applications in metrology systems, laser processing/machining, electronics manufacturing, and semiconductor manufacturing. The mPR 80 has common mounting feature to that of the MX80, and mSR 80/100, and the mPR 100 size has common mounting features to that of the 404XR for complete multi-axis systems.

    • Life Science
    • Electronics manufacturing
    • Semiconductor
    • Optics

    • mPR 80: 80 mm dia. X 75 mm
    • mPR 100: 104 mm dia. X 90 mm tall
    • Continuous 360-degree operation
    • Four encoder resolutions (3 digital incremental, 1 analog sine/cosine)
    • Dowel holes in top and base for repeatable pinning
    • Through hole aperture
    • Direct mounting features to MX, mSR, and XR stages
    • 3 meter, high flex cables
    • Lightweight aluminum construction

    • Cleanroom
    • Metrology
    • Focusing
