For over fifty years, Parker Daedal has been the leader in supplying manual positioners to industries and laboratories around the world. They have thousands of ball slides, crossed roller slides and linear and rotary manual positioning stages.

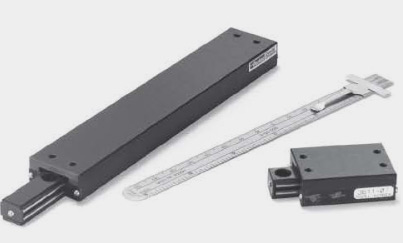

3000 Series Slides




The 3000 Series ball bearing linear slides are the ideal mechanisms for providing precise, low friction, linear motion. Two linear rows of bearings (one located on each side of the base), support the carriage and provide smooth, accurate, linear translation.
  • 0.75, 1.00, and 1.25 inches wide
  • Hardened and precision ground 440C stainless steel balls and rods
  • 0.00008 inch straight-line accuracy per inch of travel

More Info

Shop 3000 Series Slides

4000 Series Slides


The 4000 Series ball bearing linear slides are the ideal mechanisms for providing precise, low friction, linear motion over longer travel distances. Two linear rows of bearings (one located on each side of the base), support the carriage and provide smooth, accurate, linear translation.
  • 1.75 to 5 inches wide
  • 0.00008 inch straight-line accuracy per inch of travel
  • Hardened and precision ground 440C stainless steel balls and rods

More Info

Shop 4000 Series Slides




4900 Series Slides




The 4900 Series ball bearing linear slides are the biggest ball bearing slides. Two linear rows of bearings (one located on each side of the base), support the carriage and provide smooth, accurate, linear translation.
  • 6 inches wide
  • 0.00008 inch straight-line accuracy per inch of travel
  • Hardened and precision ground 440C stainless steel balls and rods

More Info

Shop 4900 Series Slides


3900 Series Stages


The 3900 Series Stages offer center and side drive models, with and without apertures. With a 1.25 inch square profile, the 3900 series is a smooth traveling, precise positioning device.
  • Center or Side Drive Models
  • Optional Lock
  • Single, Double, or Three Axis Configurations

More Info

Shop 3900 Series Stages



4000 Series Stages




The 4000 Series stages provide a 1.75 to 5 inch square mounting surface which is ground to a precision micro-flat surface.
  • Optional Aperture
  • Single, Double, or Three axis systems
  • English and Metric Models
  • Digital Micrometers, Manual Micrometers, Fine Screws, and knob driven options

More Info

Shop 4000 Series Stages


4900 Series Stages


The 4900 Series is Daedal's largest ball bearing manual positioner. The 4900 Series offers high payload capacity, a variety of drive mechanisms, and excellent precision.
  • Micrometers, Leadscrews, and knob drive mechanisms
  • Travels to 24 inches
  • Payload capacities to almost 100 lbs.

More Info

Shop 4900 Series Stages



CR4000 Series Slides




The 4000 Series Crossed Roller Linear Slides are the ideal mechanisms for providing precise, low friction, linear motion. Two linear rows of bearings (one located on each side of the base), support the carriage and provide smooth, accurate, linear translation.
  • Higher normal load and moment load capacity versus a ball slide
  • Non re-circulating bearing style for smooth motion
  • 0.00008 inch straight line accuracy (per inch of travel)

More Info

Shop CR4000 Series Slides


CR4900 Series Slides


The 4900 Series Crossed Roller Linear Slides offer the highest load capacity of any of Daedal's crossed roller slides. Two linear rows of bearings (one located on each side of the base), support the carriage and provide smooth, accurate, linear translation.
  • Higher normal load and moment load capacity versus a ball slide
  • Non re-circulating bearing style for smooth motion
  • Factory preloaded to eliminate any side play and provide a uniform coefficient of friction

More Info

Shop CR4900 Series Slides



CR4000 Series Stages




The CR4000 Series stages provide a 1.75 to 5 inch square mounting surface which is ground to a precision micro-flat surface.
  • Optional Aperture
  • Single, Double, or Three axis systems
  • English and Metric Models
  • Digital Micrometers, Manual Micrometers, Fine Screws, and knob driven options

More Info

Shop CR4000 Series Stages


CR4900 Series Stages


The CR4900 Series is Parker Daedal's largest crossed roller manual positioner. The 4900 Series offers high payload capacity, a variety of drive mechanisms, and excellent precision.
  • Micrometers, Leadscrews, and knob drive mechanisms
  • Travels to 24 inches
  • Payload capacities to almost 2000 lbs.

More Info

Shop CR4900 Series Stages






Having trouble deciding which solution is right for your application? Let Axis New England help.


Our factory trained-engineers have years of experience in sizing and selecting manual slides and stages so put our expertise to good use by contacting us today. We can walk you through each step of the process either on the phone or on-site at your facility.
