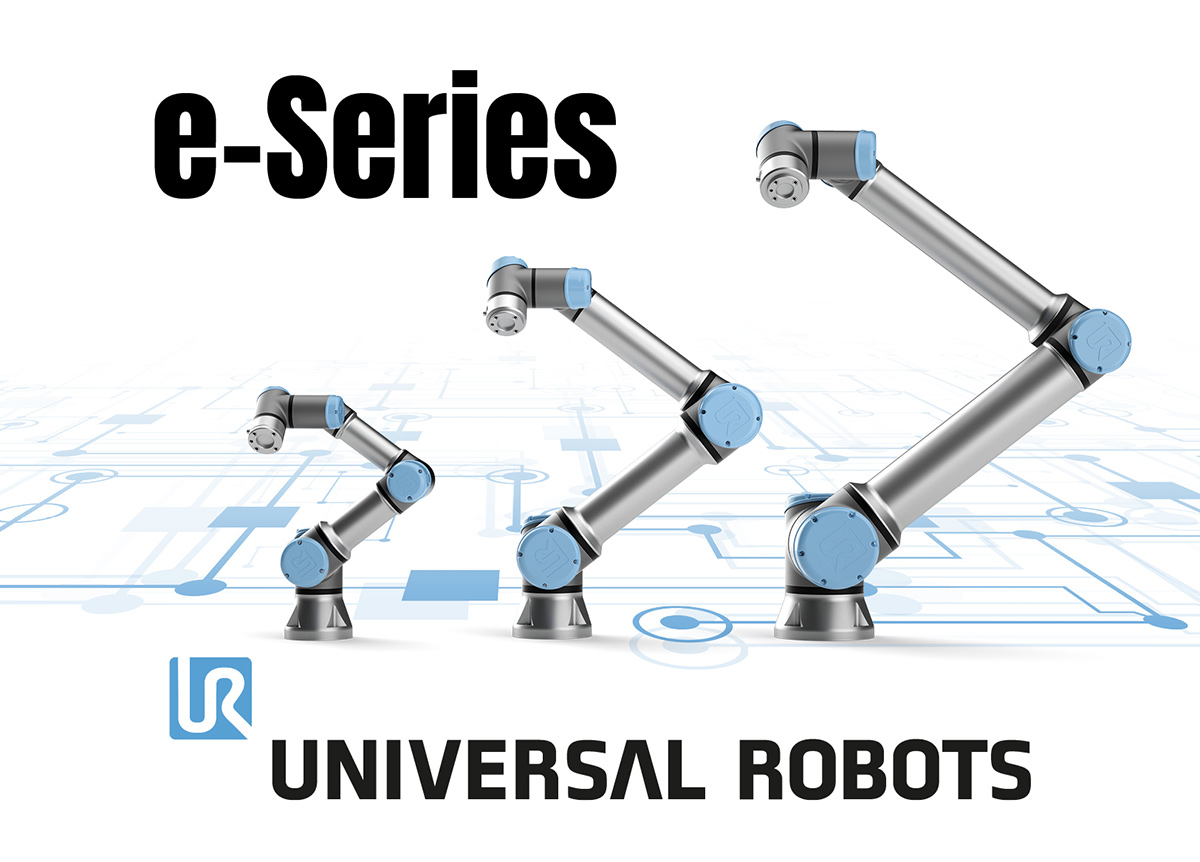

The Universal Robots e-Series is a future proof robotic automation platform for manufacturers of any size. The pioneer and market leader of collaborative robots introduces their flagship series of cobots that enables faster development, easier programming, and the very latest ISO safety standards.
Universal Robots Models
- Radius: 500 mm / 19.7 in
- Payload: 3 kg / 6.6 lbs
- Footprint: 128 mm
- Weight: 11.2 kg / 24.7 lbs
FULL UR3e SPECS
- Radius: 850 mm / 33.5 in
- Payload: 5 kg / 11 lbs
- Footprint: 149 mm
- Weight: 20.6 kg / 45.4 lbs
FULL UR5e SPECS
- Radius: 1300 mm / 51.2 in
- Payload: 10 kg / 22 lbs
- Footprint: 190 mm
- Weight: 33.5 kg / 73.9 lbs
FULL UR10e SPECS
- Radius: 900 mm / 35.4 inches
- Payload: 16 kg / 35.3 lbs
- Footprint: 190 mm
- Weight: 33.1 kg / 73 lbs
FULL UR16e SPECS
ActiNav Autonomous Bin PickingThe ActiNav Autonomous Motion Module (AMM) synchronously handles vision processing, collision-free motion planning, and autonomous real-time robot control.
BW Industrie optimizes its deburring process with the new UR16e
With 30 micron repeatability on the UR3e & UR5e and 50 micron repeatability on the UR10e, the new series is 2 to 3 times more repeatable than the previous generation.
MODERN PROGRAMMING INTERFACE
A new light and responsive tech pendant and a modern programming interface make setting up your cobot easier than ever. With all of the functions at your fingertips and easy access to UR+ add-on features, you'll be up and running in no time.
INTEGRATED FORCE-TORQUE SENSOR
With the new built in sensor, the e-Series is ready to take on applications requiring force control right out of the box, such as assembly, sanding, buffing, polishing, and deburring. A repeatability of 30 micron on the UR3e & UR5e and 50 micron on the UR10e means the new cobots are suitable for very precise finishing, assembly, and electronics tasks.
The user interface now includes programming stopping time and stopping distance for protective stops. This unique feature greatly reduces the complexity and uncertainty involved in performing pre-deployment risk assessments. All 17 safety functions are certified by TÜV Nord and in compliance with the EN ISO 13849-1 and EN ISO 10218-1 machinery safety standards for unobstructed human-robot collaboration.
Universal Robots+ is an online showroom that provides cutting-edge products to customize a UR robot application that perfectly meets your requirements. You can find everything you need in one place – from end-effectors and accessories to vision cameras and software. All products are tested and approved to perfectly integrate with UR robots, ensuring simple set-up, reliable operation, smooth user experience, and easy programming. The result is fast, smooth, and low-risk integration.
Adaptive Electric Gripper - Robotiq Hand-E
Adaptive Electric Gripper - Robotiq 2-Finger
Adaptive Electric Gripper - Robotiq 3-Finger
Vision - Robotiq Wrist Camera
Vision - MICROSCAN
Vacuum Tool - Robotiq Airpick
Vacuum Tool - Robotiq EPick
Vacuum Tool - Schmalz VEE Starter Set
Vacuum Tool - Schmalz ECBPi Cordless Vacuum
Electric Gripper - New Scale Robotics Gripper
Electric Gripper - Zimmer Collaborative Grippers
Electric Gripper - Zimmer Electric Gripper
Hybrid Gripper - Zimmer Hybrid Grippers
Pneumatic Gripper - Zimmer Pneumatic Grippers
Cable Guidance - IGUS Kits
Protective Cover - Roboworld Suits
Sensors - Robotiq FT300 Force/Torque
Part Feeding - Asycube Flexible Feeder
Robot Platforms - Vention
Software - ArtiMinds Essentials
Software - ArtiMinds RPS
Software - Robotiq Insights
DEMO A ROBOT
Are you ready to see what the e-Series can do for you? Schedule a demo today to see it in action. In most cases we can solve your application right on the spot.
